Strand cable with swaging anchorage
Extruded anchorage strand cable is the cable body ends through the extrusion and anchorage cemented into the cable assembly, cable assembly is fixed in the structure, bear the structure of static and dynamic loads. Extruded anchorage strand cable includes anchorage, strand cable body and so on.
Classification:
key word:
- DESCRIPTION
-

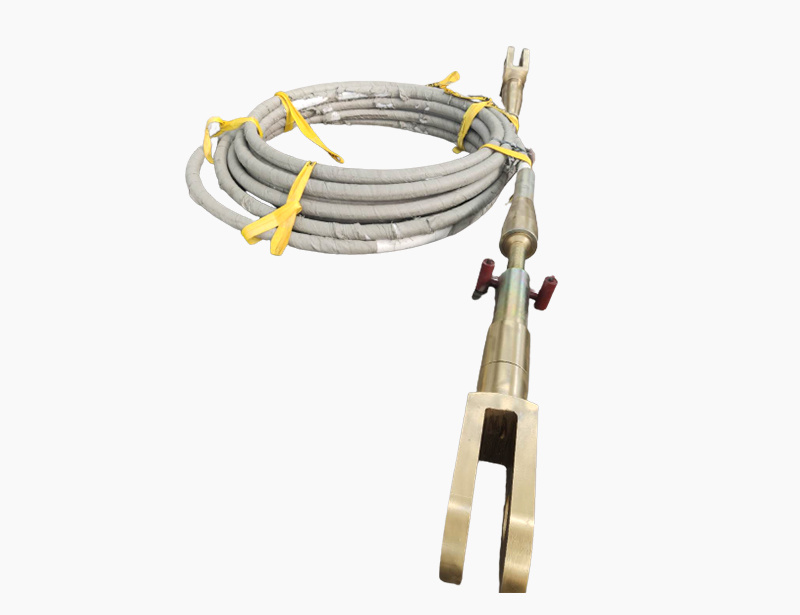

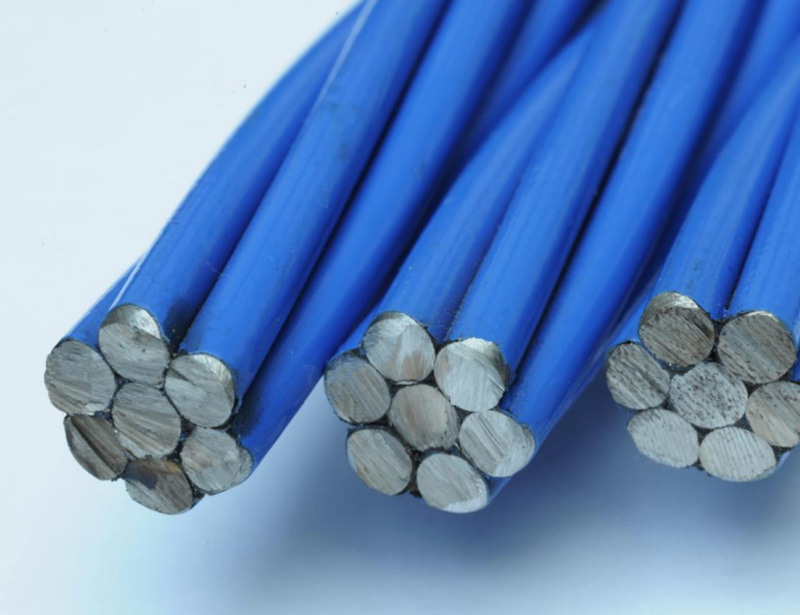

Extruded anchorage strand cable is the cable body ends through the extrusion and anchorage cemented into the cable assembly, cable assembly is fixed in the structure, bear the structure of static and dynamic loads. Extruded anchorage strand cable includes anchorage, strand cable body and so on. The anchorage assembly consists of extruded anchor head, anti-corrosion material, sealing device, nut and so on. The body of the cable is made of the corresponding number of single anticorrosive stranded wire twisted and wrapped with high-strength polyester tape, hot extrusion of the outer layer of HDPE sheath of the stranded wire finished cable. It can be used as arch bridge boom, bridge bollard and main cable anchorage of suspension bridge.
Execution standard:
JT/T 850-2013 Extruded anchored steel strand cable ties
Strength grade: 1860MPa
Nominal diameter of single strand: 12.5mm~15.7mm
Specification: 15-3~15-37
